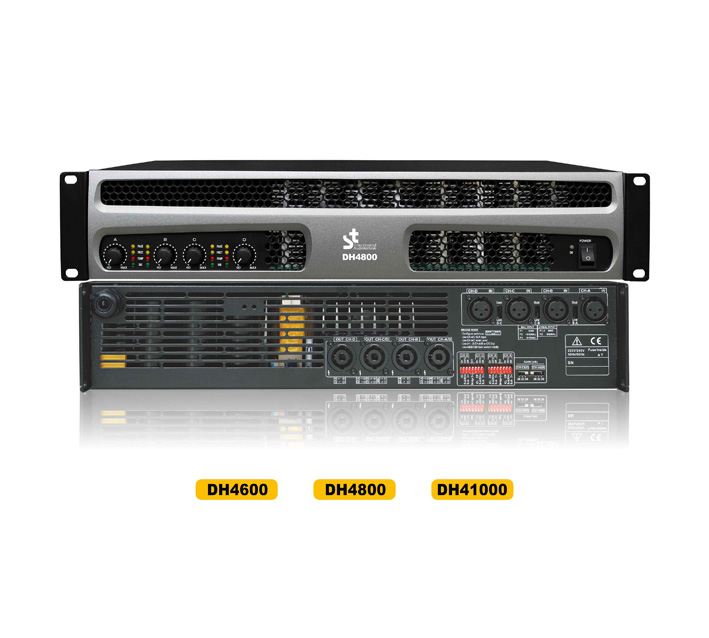

DH4 四通道专业功放
阅读:3140
型号:DH4系列



  DH4系列功能特点/Features

  超大容量的开关电源功放;

 自动限幅输出、;短路过载、过温、开机延时等保护功能;

 功放配备延时启动系统,保护音箱不受冲击而损坏;

 双、桥接或并行操作开关在后面板上;

 风扇转速随散热器温度变化而变化,有效地降低风扇噪音;

 功放部分开关电源部分都有单独的冷却系统;

 输入有单通道,立体声,模式选择;

 XLR输入连接器;

 双接线柱,SPEAKON输出连接器;

 483MM标准机架结构;

 SMT贴片生产工艺,产品性能稳定;

 2U设计、机身轻、方便携带和安装;



DH4系列功能特点/Features

 Large-capacity switching power amplifier.

 Auto limiting output; short circuit overload, over temperature, start delay and other protection;

 Amplifier with delay start system, protect the speakers from shock and damage;

 Double, bridge or parallel operation switch on the rear panel;

 Radiator fan speed with temperature changes, effectively reduces the fan noise;

 Switching power amplifier section has a separate section of the cooling system;

 There is a single channel input, stereo, mode selection;

 Dual XLR input connector;

 Double terminal, SPEAKON output connector;

 483MM standard rack structure;

 SMT stable chip production technology, product performance;

 2U four-channel design, the body light and easy to carry;



DH4系列技术参数/Specification

型号/ModelDH4600DH4800DH41000

输出/Output (8Ω1kHz):4x600W,4x800W,4x1000W

输出/Output (4Ω1kHz)4x900W,4x1200W,4x1500W

桥接/Bridge(8Ω1kHz):2x1800W2x2400W2X3000W

粉红噪声12dB峰值系数4ΩPink Noise 12dB peak factor4Ω

4x1200W4x1700W4x2100W

频率响应/Frequency response Power Bandwidth ±0.25dB20Hz-20kHz

相位响应/Phase response@ 1 watt 20Hz-20kHz±15 deg

总谐波失真/T.H.D (20Hz-20kHz)<0.05%

互调失真(SMPTE)Intermodulation distortion<0.05%

串音/Crosstalk (20Hz-20kHz)>75 dB

转换速率/Slew Rate>65 V/μs

阻尼系数/Damping Factor (20Hz-1kHz)>800

电压增益/Voltage gain26/32/38dB

灵敏度(额定功率 8Ω)Sensitivity (rated power  8Ω)

3.9/1.9/1V4.5/2.2/1.1V5.1/2.6/1.3V

信噪比(A加权)S/N  (A weighted):113dB116dB118dB

AC 230 V - 50 Hz (idle)0.5A

4Ω (1/8 rated power)9A 11.5A15A

尺寸/Dimensions W x H x D (mm)

483x89x460483x89x460483x89x460

重量/Weight12.0kg12.0kg12.0kg
